Hand Fly Press and Machinery

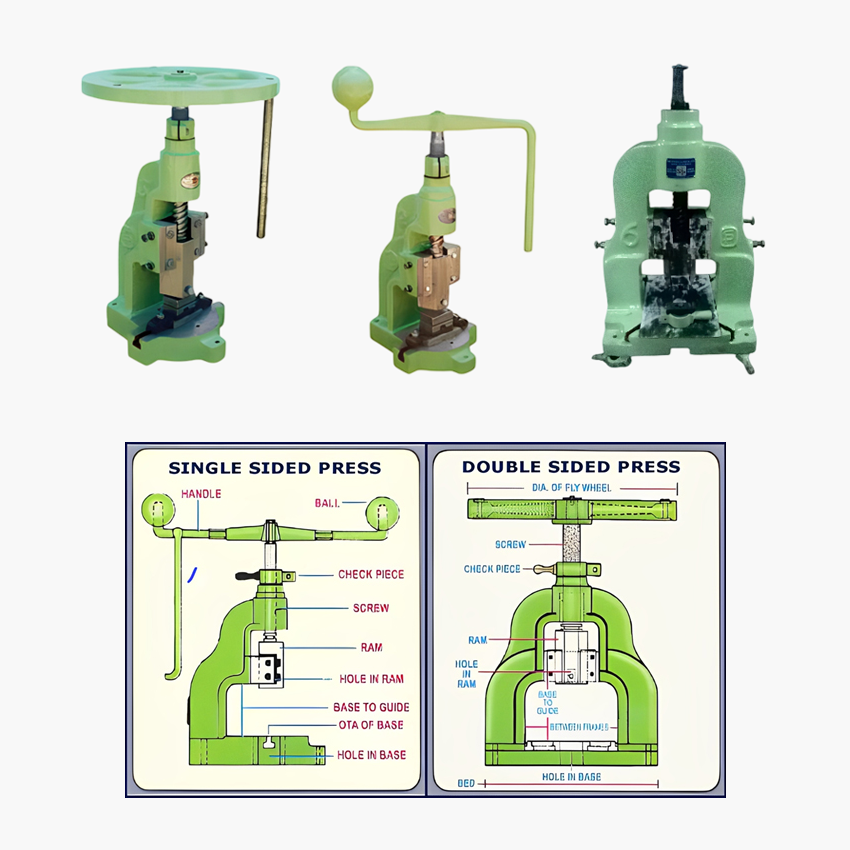

Single & Double Sided Fly Presses
- A well proportioned heavy duty Fly Presses designed for carrying out general heavy press work
- A carefully casted and machined allover where necessary for maintaining efficiency and accuracy
- A sufficient space is kept for easy clamping and removing dies
- A wide range of Fly Presses are available into Nine sizes
- 1. One Ball Weight supplied with Presses No. 0, 1 & 2
- 2. Two Balls Weight supplied with Presses Nos. 3 to 9 & 6D
- 3. No. 0 to 5 supplied with 1 Handle (Rod) No. 6, 9 & 6D with 2 Handle (Rods) with Fly Wheel
- 4. No. 0 to 6, 9 & 6D Fitted with 2 Clamps
Note: Press No. 3, 4, 5, 6 & 9 Single Sided & 6D Double Sided with rings in the hole through base.
|
S |
Base to Guide |
Center to Back |
Hole Thro20ugh Base |
Between |
Dia. of Screw |
Appr. Weight Kgs. |
Ram Hole diameter & Depth |
||||||||||||
|
Inch |
Appr. |
Inch |
Appr. |
Without Ring |
With Ring |
Inch |
Appr. |
Inch |
Appr. |
Complete with |
Net |
Complete with Wheel |
Inch |
Appr. |
Inch |
Appr. |
|||
|
Inch |
Appr. |
Inch |
Appr. |
||||||||||||||||
|
0 |
4.1/2 |
114 |
3 |
76 |
1.3/4 |
44 |
- |
- |
2.1/2 |
64 |
1.1/2 |
38 |
49 |
40 |
- |
3/4 |
19 |
1.1/2 |
38 |
|
1 |
5 |
127 |
3.1/2 |
89 |
2 |
51 |
- |
- |
3 |
76 |
1.11/16 |
43 |
75 |
66 |
90 |
3/4 |
19 |
1.1/2 |
38 |
|
2 |
5.3/4 |
146 |
3.3/4 |
95 |
2.1/2 |
64 |
- |
- |
3.3/4 |
96 |
1.11/16 |
43 |
109 |
100 |
130 |
3/4 |
19 |
1.1/2 |
38 |
|
3 |
6.3/4 |
171 |
4.1/2 |
114 |
3 |
76 |
1.1/2 |
38 |
4.1/2 |
114 |
1.7/8 |
48 |
150 |
125 |
168 |
1 |
25 |
1.1/2 |
38 |
|
4 |
7.1/4 |
184 |
4.3/4 |
121 |
3.1/2 |
89 |
1.3/4 |
44 |
5.1/4 |
133 |
1.7/8 |
48 |
164 |
137 |
188 |
1 |
25 |
1.1/2 |
38 |
|
5 |
7.3/4 |
197 |
5 |
127 |
4 |
102 |
2 |
51 |
6 |
152 |
1.7/8 |
48 |
247 |
220 |
271 |
1 |
25 |
1.1/2 |
38 |
|
6 |
9 |
229 |
6 |
152 |
4.1/2 |
114 |
2.1/4 |
57 |
7 |
178 |
2.5/16 |
58 |
301 |
267 |
334 |
1 |
25 |
2 |
51 |
|
9 |
11 |
280 |
8 |
203 |
7 |
179 |
3 |
75 |
10 |
254 |
3 |
75 |
- |
475 |
550 |
1.1/4 |
31.75 |
2 |
51 |
|
6D |
9 |
229 |
- |
- |
4.1/2 |
114 |
2.1/4 |
57 |
9 |
228 |
2.5/16 |
58 |
- |
304 |
405 |
1 |
25 |
2 |
51 |

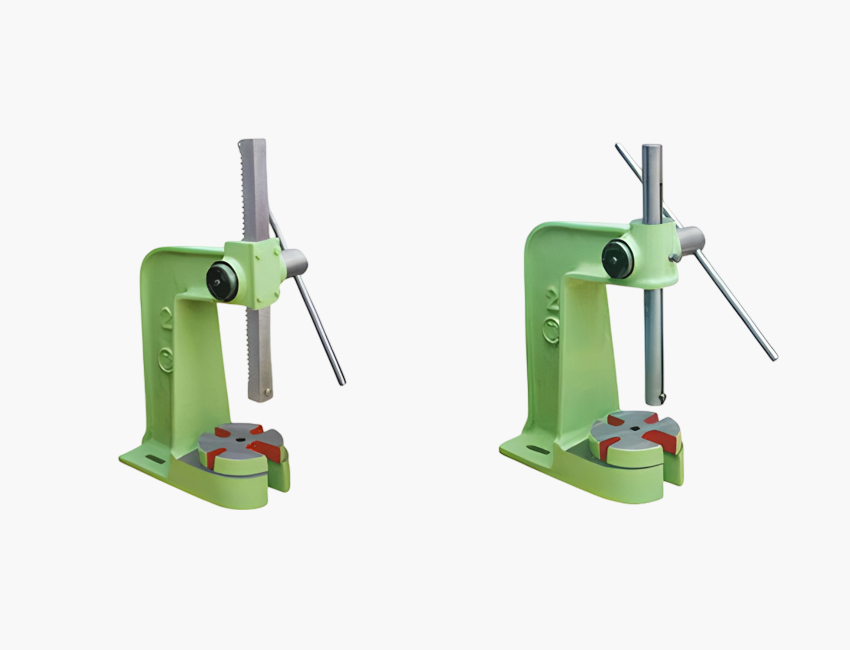

Round & Square Arbour Presses
Hand operated arbour presses are designed for production work of quick operation in general engineering workshop. Automobile workshop, garages etc. or driving mandrels in and out of work, and can also be used for inserting and removing bushes, bearing etc. They do not bend or burr the work or necessitate taking off carrier and will prove a saving of time and increased life of arbours.
BODY:
Made from solid cast Iron
Ram & Pinion:
Made from carbon steel
Arbour Plate:
Rotates on its center and is slotted for different type of mandrels.
RAM Round Ram:
Provided with a key way and screw to prevent the ram turning
Square Ram:
Has a larger bearing surfaces, which prolong serving life. The machined ram bearing plate is held securely to the frame by four large screws, permitting for possible wear.
| MODEL NO. | AP - 0 | AP - 1 | AP - 2 | AP - 3 | AP - 4 | |
|---|---|---|---|---|---|---|
| Maximum Pressure Exerted |
Tons Kg. |
1/4 250 |
1/2 500 |
1 1000 |
1.1/2 1500 |
4 4000 |
| Center to Back |
Inch MM |
4.1/2 113 |
5.1/2 140 |
6.3/4 170 |
7.1/2 190 |
10 250 |
| Minimum Height from Base to Guide |
Inch MM |
6.3/4 170 |
11 280 |
13.1/2 345 |
15 380 |
25 635 |
| Maximum Height Arbour Plate to Guide |
Inch MM |
5.1/4 135 |
9.1/2 240 |
12 300 |
13.1/2 345 |
23 585 |
| Size of Arbour Round or Square |
Inch MM |
1 25 |
1.1/4 32 |
1.1/2 - |
1.3/4 45 |
2.3/8 60 |
| Approx Weight | Kg. | 25 | 28 | 70 | 77 | 150 |

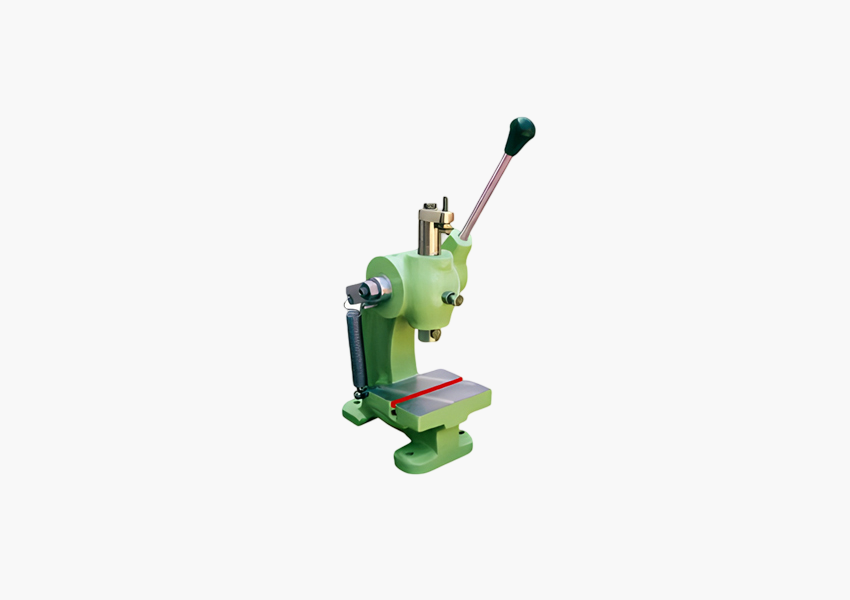

Spring Controlled Arbour Press
The special features are as under :
- The stroke is adjustable
- There is adjustable spring tensioning device
- Automatic spring return of spindle
- T - Slotted base surface
The press solid, hollow and eyelet reiveting, flatting numbering, marking, assembling etc. hence it is extremely useful in all light engineering industries be like electronic and electrical control equipment, domestic appliances, radios, battery cells, metering equipment, cycles, office equipments, ammunition, small tools automobile ancillaries etc.
BODY:
Made from solid cast Iron
RAM & PINION:
Made from carbon steel or EN 8 Steel
| MODEL NO. | SAP - 0 | SAP - 1 | SAP - 2 | |
|---|---|---|---|---|
| Maximum Pressure Exerted |
Tons Kg. |
1/4 250 |
1/2 500 |
3/4 750 |
| Center to Back |
Inch MM |
2 50 |
2.3/4 70 |
3.3/4 85 |
| Minimum Height from Base to Guide |
Inch MM |
1.1/2 38 |
3.3/4 70 |
6.1/4 158 |
| Maximum Height Arbour Plate to Guide |
Inch MM |
2.3/4 70 |
5.1/2 140 |
10.1/4 260 |
| Size of Arbour Round or Square |
Inch MM |
1.1/8 28 |
1.3/8 35 |
1.1/2 38 |
| Size of 'T' Slot |
Inch MM |
1/2 12 |
1/2 12 |
1/2 12 |
| Hole in Ram |
Inch MM |
3/8 10 |
1/2 12 |
1/2 12 |
| Approx Weight | Kg. | 15 | 25 | 45 |

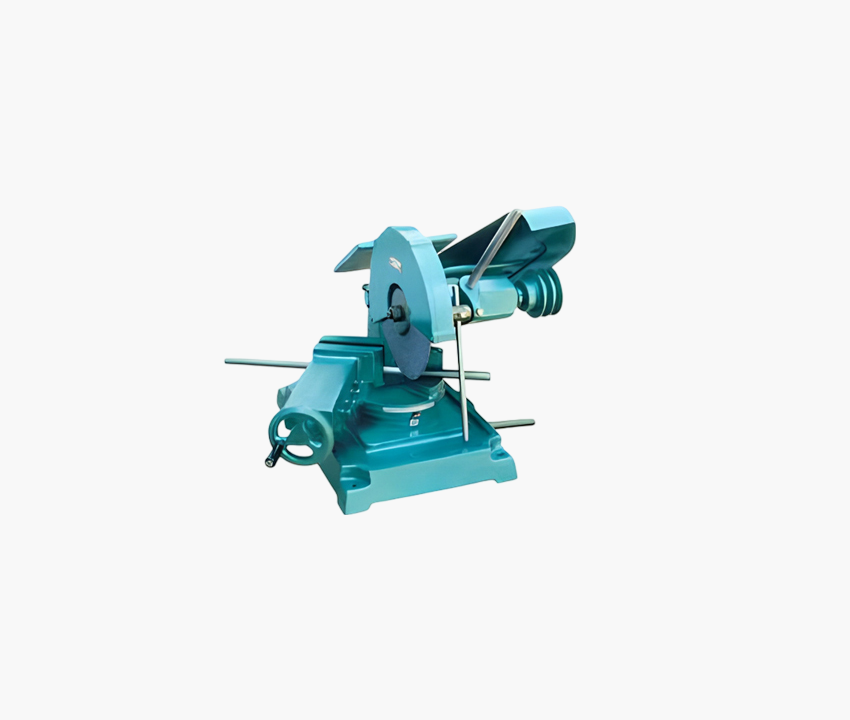

Cut Off Machine
Key Features & Capabilities
Material Compatibility:
Capable of cutting Brass, Copper, Stainless Steel, Aluminum, and other Non-Ferrous Materials.
Precision Cutting:
Ensures uniform and burr-free cuts, enhancing downstream machining efficiency.
Size Versatility:
Handles a wide range of diameters and thicknesses for diverse industrial needs.
High-Speed Operation:
Improves productivity while maintaining dimensional accuracy.
Minimal Material Waste:
Optimized for efficiency, reducing scrap and enhancing cost-effectiveness.
Integration with CNC & Secondary Operations:
Seamless transition to machining processes for high-quality components.
| Max. Abrasive Wheel Size | 300 x 3 | - |
|---|---|---|
| Max. Saw Dimensions | - | 300 x 2 |
| Suitable to Cut Material | Iron and Steels | Alluminium, Brass, Plastic, Wood and Soft Materials |
| Electric Motor, HP-RPM | 3 - 2800 | 1 - 1400 |
| 3 Ph. 420 V. 50 AC | 3 Phase | 3 Phase or 1 Phase |
| Maximum Bars ( ) | 25 | 75 |
| Cutting Pipes ( x W.T.) | 75 x 6 | 100 x 8 |
| Capacity Sections (H x W) | 75 x 50 | 100 x 70 |
| Max. Cutting Dimensions | - | - |
| Cutting at 900 angles | - | - |
| - Max. Height | 100 | 100 |
| - Max. Width | 85 | 85 |
| Cutting at 450 Angles | - | - |
| - Max. Height | 100 | 100 |
| - Max. Width | 60 | 60 |
| Approx. Net Weight Kgs. | 105 | 105 |

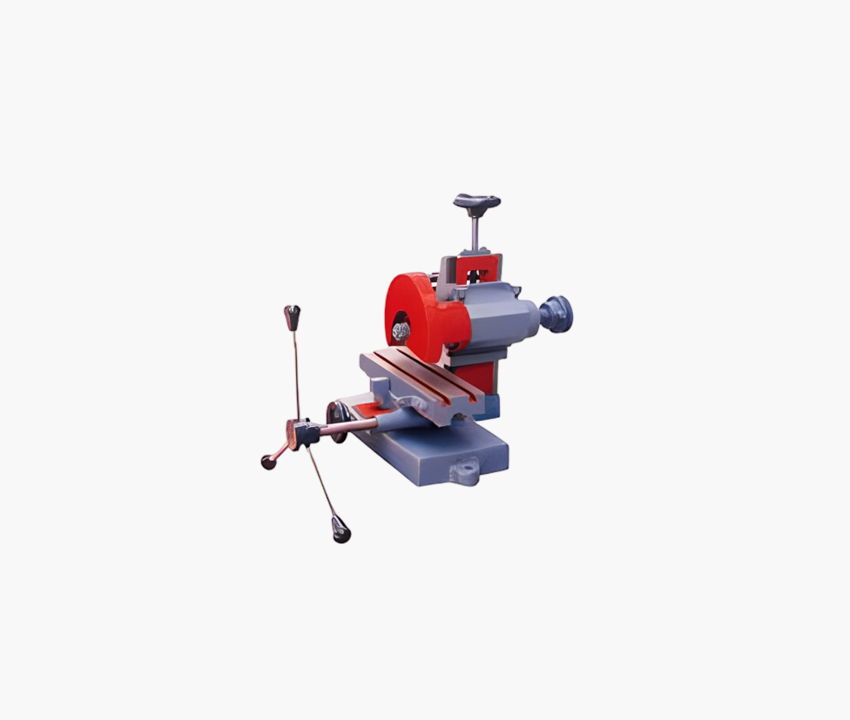

Universal Slotting Machine
Key Features & Capabilities:
Material Compatibility:
Ideal for Brass, Copper, Stainless Steel, Aluminum, and other Non-Ferrous Materials.
Precision Slotting:
Ensures clean, accurate, and uniform slots with high repeatability.
Size Versatility:
Capable of handling slot sizes ranging from 10mm to 40mm, catering to diverse industrial requirements.
High-Speed Performance:
Enhances productivity while maintaining dimensional accuracy and surface finish.
Custom Slotting Capabilities:
Suitable for keyways, internal slots, and other complex slotting applications.
Integration with CNC & Secondary Operations:
Seamless workflow ensures high-quality, finished components.
| Slide Movement | 8" | 200 mm |
|---|---|---|
| Cross Slide Movement | 4" | 100 mm |
| Padestal Up-Down Movement | 3" | 75 mm |
| Weight | 60 Kgs. | - |
